dsh-graft-plugin

A DeepSeek Harness plugin that puts graft — a prebuilt graph of every symbol, its file:line span, and who calls what — in front of both you and the model.

View on GitHub

Install

dsh plugin --profile web add dsh-graft-plugin
dsh --profile web

Every tool here shells out to the graft CLI, so it needs @nanonets/graft on PATH — npm install -g @nanonets/graft. A postinstall does this for you when your package manager runs lifecycle scripts; pnpm 10+ blocks them by default, so treat that command as the required step there.

If add ends with ERR_PNPM_IGNORED_BUILDS, dsh skips writing the plugin’s bundle row — the dependency lands, the plugin stays invisible, and dsh starts up cleanly. Approve and re-run:

cd ~/.dsh/profiles/web && pnpm approve-builds
dsh plugin --profile web add dsh-graft-plugin

Then index a repo once:

cd <your repo>
graft build

That is the whole setup. The chip appears in the composer and the model gets the tools.

In the desktop app

The desktop dsh installs from its own Plugins settings: click Add plugin, paste https://github.com/adithyanraj03/dsh-graft-plugin (or the package name dsh-graft-plugin), and click Install. The dialog confirms with the Installed state:

The Add plugin dialog with the repository address

The Installed confirmation with the install details

Installed plugins do not update automatically yet — to upgrade, uninstall and install again.

What it does

Names the graph you are actually on

A chip beside the model name, resolved from the session’s workspace rather than from wherever dsh was launched:

● graft · my-repo      in sync
◐ graft · my-repo      syncing
▲ graft · my-repo      stale

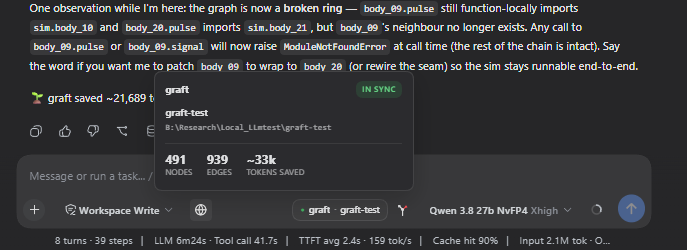

The chip in the composer, with its hover card

The card’s header carries a Build button: in an indexed repo it runs the same rebuild as the auto-rebuild and holds “Building…” until the pill reads in sync; in a workspace with no index it asks first (dsh’s own dialog), then runs a plain offline graft build. The dot blinks violet while a graft_* tool runs, and chip, card and tab follow the active dsh theme. A linked git worktree gets its own graph — never the main checkout’s — and /graft there seeds the first one from it.

This is the reason the plugin exists rather than the graft mcp server. graft mcp resolves its repo once, from its own working directory at startup, and nothing can re-point it afterwards. Launched from a home directory it answers “no graph found” for every workspace you open — while the CLI, run in the same repo, answers fine.

Gives the model five tools

tool	what it answers
`graft_ask`	“how does X work” / “where is Y” — ranked hits, code inlined at exact `file:line`
`graft_grep`	every occurrence, grouped by enclosing symbol
`graft_callers`	who calls it, what it calls, the blast radius before a rename
`graft_skeleton`	a file’s whole API in ~200 tokens
`graft_map`	orientation in an unfamiliar tree

Each is resolved per session, so one dsh can serve several workspaces at once.

None of them take a boolean parameter — they take string enums, which reads better to a model and avoids a real failure mode on some OpenAI-compatible servers where a call that sets a boolean is emitted as literal <tool_call> text and never runs.

Keeps the index current

/graft builds or rebuilds on demand. After the model edits files the index rebuilds in the background, debounced so a long turn does not rebuild constantly. It reuses graft’s own sync runner, so it cannot drift from what graft build does.

Draws the graph

A graft viz button opens the visualiser as a tab — in dsh’s built-in right sidebar on 0.1.5+ (where it is also listed on the sidebar’s guide page), in dsh-better-sidebar if that is mounted, and in a browser tab as the last resort.

Compatibility. dsh-better-sidebar 0.18.x requires @deepseek-ai/dsh-client-ui-primitives, which dsh removed in 0.1.5-rc.2 — on that version or later the tab will not mount. Everything else in the plugin is unaffected.

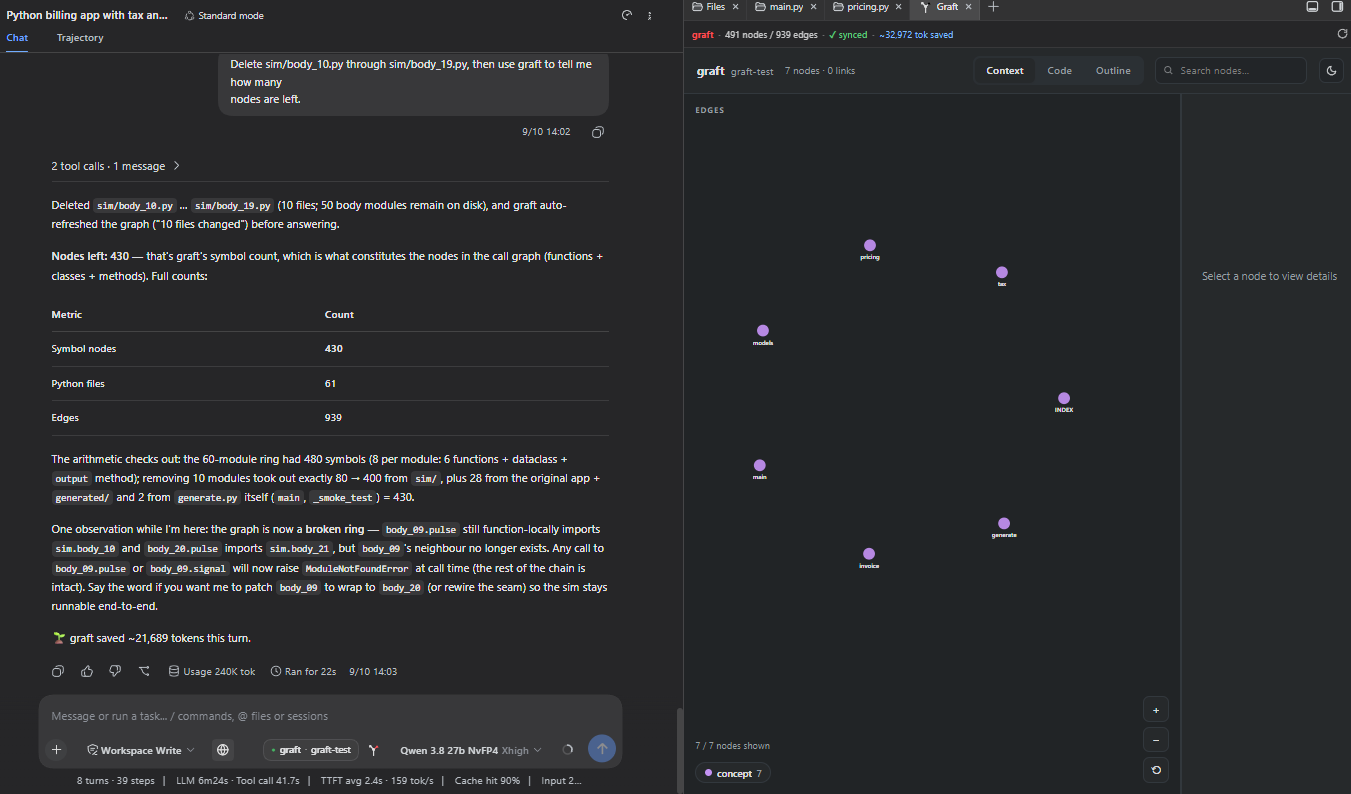

The graph in the sidebar — context view

The code view drills into a single file — what it contains, what it depends on, what depends on it:

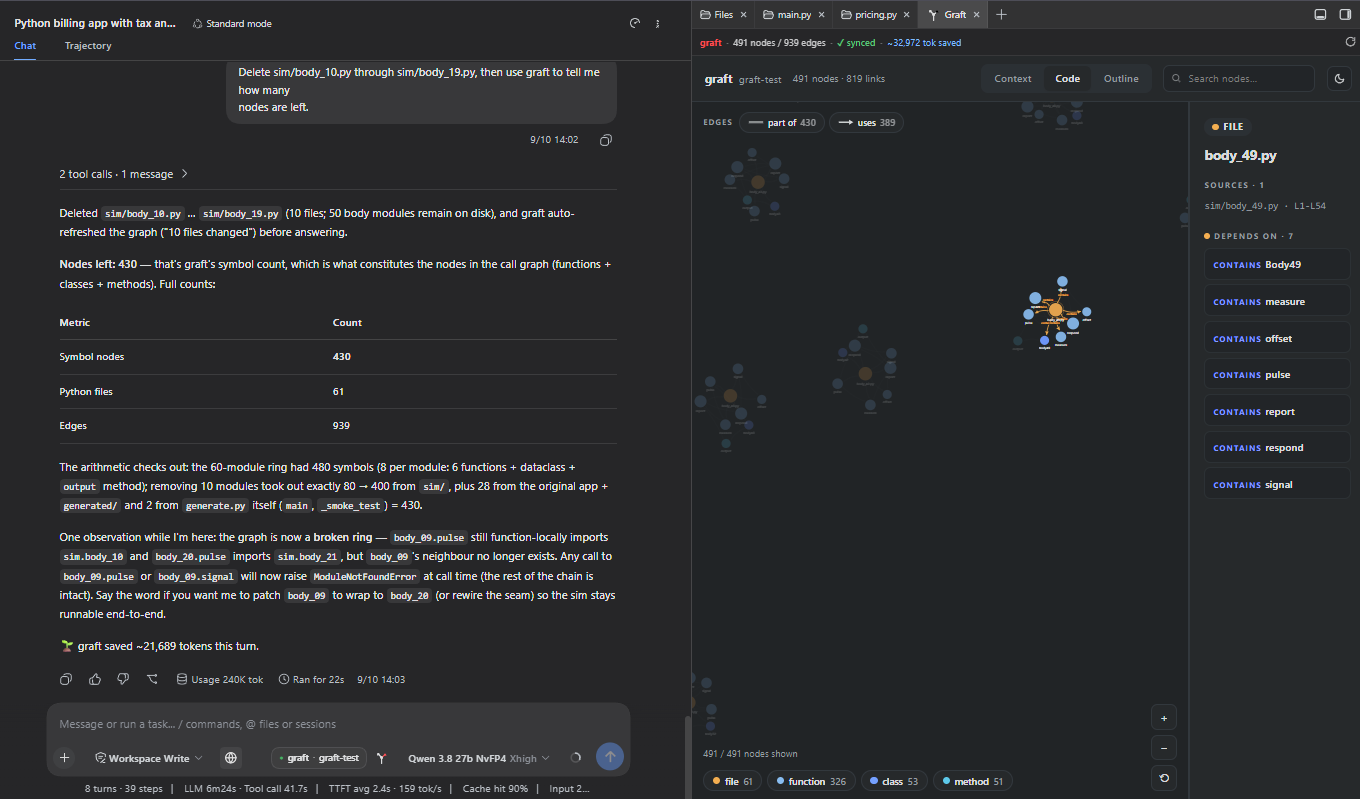

The graph in the sidebar — code view

Configuration

On the plugin’s row in your profile’s cordis.patch.yml — all optional:

- id: graft-status
  name: 'dsh-graft-plugin'
  config:
    cwd: 'C:/path/to/repo'   # pin to one repo instead of resolving per session
    tools: false             # drop the graft_* tools, keep the chip
    command: false           # drop /graft
    promptSection: false     # stop telling the model to use graft
    autoBuild: false         # stop rebuilding after edits (the card's Build button still works)

Requirements

dsh	status
`0.2.1-rc.2`	test suites pass against the `0.2.1-rc.2` packages — chip, tools, `/graft`, auto-rebuild and the model-facing guidance; the dual-shape codecs load on both 0.1 and 0.2 hosts
`0.1.7-rc.2`	tested on a live profile (0.3.0) — chip, tools, `/graft`, auto-rebuild and the model-facing guidance all verified
`0.1.2-rc.1` – `0.1.0-rc.7`	tested, full feature set — the `graft viz` tab via `dsh-better-sidebar`
`0.1.5-rc.2` / `0.1.5`	tested — chip, tools, `/graft` and auto-rebuild work; on `0.1.5` the `graft viz` button opens the graph in the built-in right sidebar
`0.2.0-rc.2`	needs plugin `0.2.1`+ — earlier releases fail to activate

Node 22+
the graft CLI on PATH (npm install -g @nanonets/graft). A bun global install (bun add -g @nanonets/graft) is detected too, via $BUN_INSTALL or ~/.bun.

The client bundle requires only react, which is why it survives the dsh 0.1.5-rc.2 client-package removals that broke several neighbouring plugins.

Licensed MIT. Issues and pull requests at github.com/adithyanraj03/dsh-graft-plugin.
